SAML IdP overview

Hanzo IAM can act as a SAML 2.0 IdP. This page covers SP configuration, Hanzo IAM IdP settings, and SAML attributes.

Configuration in the SP (service provider)

The SP typically needs Single Sign-On URL, Issuer, and Public Certificate. Most SPs can fill these from the Hanzo IAM XML Metadata URL or by uploading the metadata file.

Hanzo IAM metadata URL format: <iam-endpoint>/v1/iam/saml/metadata?application=admin/<application-name>

Example: if Hanzo IAM is at https://iam.hanzo.ai and the application is app-built-in:

https://iam.hanzo.ai/v1/iam/saml/metadata?application=admin/app-built-in

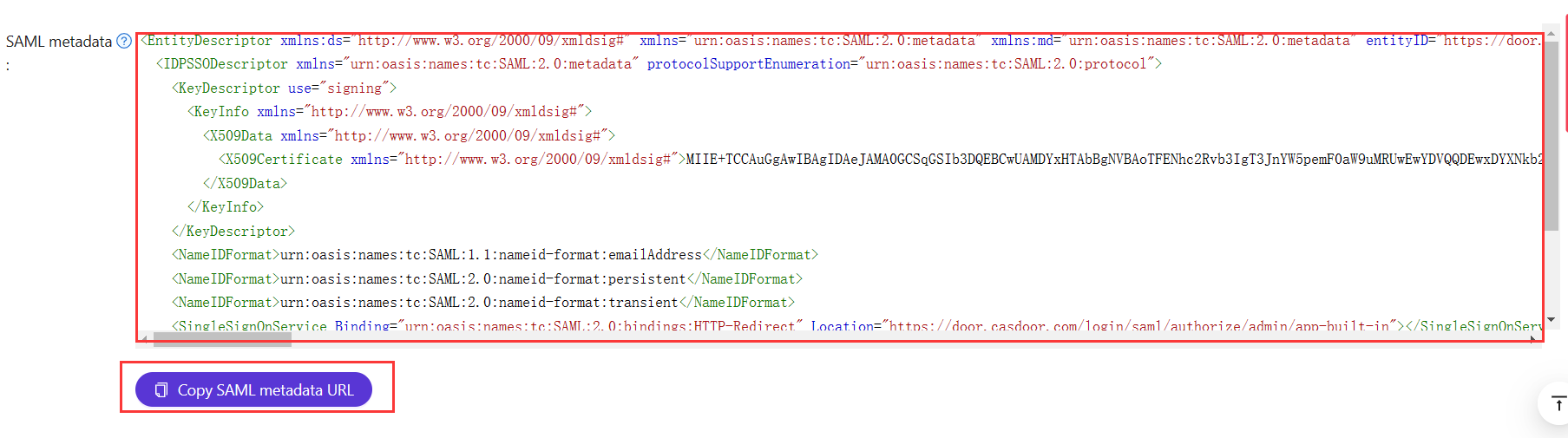

The metadata URL is also on the application edit page; copy it and open in a browser to download the XML.

metadata

Configuration in Hanzo IAM IdP

Hanzo IAM supports both GET and POST SAMLResponse. Configure the application in Hanzo IAM to match the SAMLResponse binding (GET or POST) that your SP supports.

When integrating Hanzo IAM as a SAML IdP with external identity providers (like Azure AD), the /v1/iam/acs endpoint receives SAML responses. It accepts POST only, and is configured to accept cross-origin POST requests so IdPs on other domains can post authentication data to it.

:::info

If you fill in the Reply URL, Hanzo IAM will send the SAMLResponse by POST Request. If the Reply URL is empty, Hanzo IAM will use GET request. You might wonder how Hanzo IAM knows the Reply URL of the SP if the Reply URL is empty. Actually, Hanzo IAM can get the URL called AssertionConsumerServiceURL by parsing the SAMLRequest and send the request with SAMLResponse to AssertionConsumerServiceURL. The Reply URL will overwrite the AssertionConsumerServiceURL in SAMLRequest.

:::

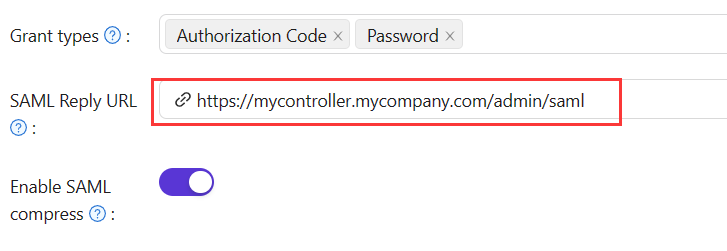

Reply URL: Type in the URL of the ACS verifying the SAML response.

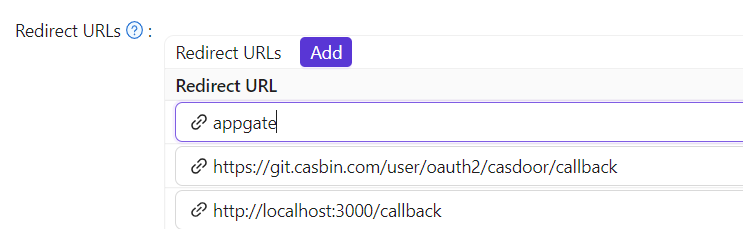

Redirect URL: Type in a unique name. This may be called Audience or Entity ID in your SP. Make sure you fill the same Redirect URL here as in your SP.

SAML attributes

If the SP requires extra attributes in the SAML response, add them in the SAML attributes table and map user fields as needed.

If the service provider only needs NameID and not extra user attributes (Email, Name, DisplayName, Roles), enable Disable SAML attributes in the application settings. When enabled, Hanzo IAM will omit these attributes from the SAML response, which can help avoid XML namespace issues with certain SPs that have strict validation requirements.

Assertion signature control

SAML responses from Hanzo IAM are always signed to ensure authenticity. However, some service providers may not support or require signed assertions within the response itself. Starting from version 2.81.0, Hanzo IAM added assertion signatures following SAML 2.0 best practices, but this caused compatibility issues with certain SPs like Sentry.

If a service provider does not handle signed assertions correctly, disable assertion signing while keeping the response envelope signed. Toggle the Enable SAML assertion signature option in your application settings to control this behavior. When disabled, Hanzo IAM will sign only the SAML response envelope, which maintains security while ensuring compatibility with a wider range of service providers.

For example

Name	Name format	Value
`https://www.aliyun.com/SAML-Role/Attributes/RoleSessionName`	Unspecified	`$user.name`
`https://www.aliyun.com/SAML-Role/Attributes/Role`	Unspecified	`acs:ram::1879818006829152:role/$user.roles,acs:ram::1879818006829152:saml-provider/testa`

will generate response with external saml:Attribute

<saml:Attribute Name="https://www.aliyun.com/SAML-Role/Attributes/RoleSessionName" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:unspecified">
    <saml:AttributeValue xsi:type="xs:string">admi122n@outlook.com</saml:AttributeValue>
</saml:Attribute>
<saml:Attribute Name="https://www.aliyun.com/SAML-Role/Attributes/Role" NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:unspecified">
    <saml:AttributeValue xsi:type="xs:string"> acs:ram::1879818006829152:role/role1,acs:ram::1879818006829152:saml-provider/testa</saml:AttributeValue>
    <saml:AttributeValue xsi:type="xs:string"> acs:ram::1879818006829152:role/role2,acs:ram::1879818006829152:saml-provider/testa</saml:AttributeValue>
</saml:Attribute>

:::info

We only support insert `$user.owner`,`$user.name`,`$user.email`,`$user.id`,`$user.phone`,`$user.roles`,`$user.permissions`,`$user.groups`

:::

### User profile

After successfully logging in, the user profile in the returned `SAMLResponse` from Hanzo IAM has three fields. The attributes in the XML and the attributes of the user in Hanzo IAM are mapped as follows:

| XML Attribute Name |  User field   |
|:------------------:|:-------------:|
|       Email        |     email     |
|    DisplayName     |  displayName  |
|        Name        |     name      |

See `https://en.wikipedia.org/wiki/SAML_2.0` for more information about SAML and its different versions.

### An example

[gosaml2](https://github.com/russellhaering/gosaml2) is a SAML 2.0 implementation for Service Providers based on etree and goxmldsig, a pure Go implementation of XML digital signatures. We use this library to test the SAML 2.0 in Hanzo IAM as shown below.

Example: Hanzo IAM at `http://localhost:7001/`, application `app-built-in` in org `built-in`. Add `http://localhost:6900/acs/example` and `http://localhost:6900/saml/acs/example` to **Redirect URLs** in `app-built-in`.

```go
import (
    "crypto/x509"
    "fmt"
    "net/http"

    "io/ioutil"

    "encoding/base64"
    "encoding/xml"

    saml2 "github.com/russellhaering/gosaml2"
    "github.com/russellhaering/gosaml2/types"
    dsig "github.com/russellhaering/goxmldsig"
)

func main() {
    res, err := http.Get("http://localhost:7001/v1/iam/saml/metadata?application=admin/app-built-in")
    if err != nil {
        panic(err)
    }

    rawMetadata, err := ioutil.ReadAll(res.Body)
    if err != nil {
        panic(err)
    }

    metadata := &types.EntityDescriptor{}
    err = xml.Unmarshal(rawMetadata, metadata)
    if err != nil {
        panic(err)
    }

    certStore := dsig.MemoryX509CertificateStore{
        Roots: []*x509.Certificate{},
    }

    for _, kd := range metadata.IDPSSODescriptor.KeyDescriptors {
        for idx, xcert := range kd.KeyInfo.X509Data.X509Certificates {
            if xcert.Data == "" {
                panic(fmt.Errorf("metadata certificate(%d) must not be empty", idx))
            }
            certData, err := base64.StdEncoding.DecodeString(xcert.Data)
            if err != nil {
                panic(err)
            }

            idpCert, err := x509.ParseCertificate(certData)
            if err != nil {
                panic(err)
            }

            certStore.Roots = append(certStore.Roots, idpCert)
        }
    }

    randomKeyStore := dsig.RandomKeyStoreForTest()

    sp := &saml2.SAMLServiceProvider{
        IdentityProviderSSOURL:      metadata.IDPSSODescriptor.SingleSignOnServices[0].Location,
        IdentityProviderIssuer:      metadata.EntityID,
        ServiceProviderIssuer:       "http://localhost:6900/acs/example",
        AssertionConsumerServiceURL: "http://localhost:6900/v1/_saml_callback",
        SignAuthnRequests:           true,
        AudienceURI:                 "http://localhost:6900/saml/acs/example",
        IDPCertificateStore:         &certStore,
        SPKeyStore:                  randomKeyStore,
    }

    http.HandleFunc("/v1/_saml_callback", func(rw http.ResponseWriter, req *http.Request) {
        err := req.ParseForm()
        if err != nil {
            rw.WriteHeader(http.StatusBadRequest)
            return
        }
        samlReponse := req.URL.Query().Get("SAMLResponse")
        assertionInfo, err := sp.RetrieveAssertionInfo(samlReponse)
        if err != nil {
            fmt.Println(err)
            rw.WriteHeader(http.StatusForbidden)
            return
        }
        fmt.Println(assertionInfo)
        if assertionInfo.WarningInfo.InvalidTime {
            fmt.Println("here12:", assertionInfo.WarningInfo.InvalidTime)
            rw.WriteHeader(http.StatusForbidden)
            return
        }

        if assertionInfo.WarningInfo.NotInAudience {
            fmt.Println(assertionInfo)
            fmt.Println("here13:", assertionInfo.WarningInfo.NotInAudience)
            rw.WriteHeader(http.StatusForbidden)
            return
        }

        fmt.Fprintf(rw, "NameID: %s\n", assertionInfo.NameID)

        fmt.Fprintf(rw, "Assertions:\n")

        for key, val := range assertionInfo.Values {
            fmt.Fprintf(rw, "  %s: %+v\n", key, val)
        }
        fmt.Println(assertionInfo.Values.Get("FirstName"))
        fmt.Fprintf(rw, "\n")

        fmt.Fprintf(rw, "Warnings:\n")
        fmt.Fprintf(rw, "%+v\n", assertionInfo.WarningInfo)
    })

    println("Visit this URL To Authenticate:")
    authURL, err := sp.BuildAuthURL("")
    if err != nil {
        panic(err)
    }

    println(authURL)

    println("Supply:")
    fmt.Printf("  SP ACS URL      : %s\n", sp.AssertionConsumerServiceURL)

    err = http.ListenAndServe(":6900", nil)
    if err != nil {
        panic(err)
    }
}

Run the above code, and the console will display the following message.

```text
Visit this URL To Authenticate:
http://localhost:7001/login/saml/authorize/admin/app-built-in?SAMLRequest=lFVbk6K8Fv0rFvNo2QR...
Supply:
  SP ACS URL      : http://localhost:6900/v1/_saml_callback

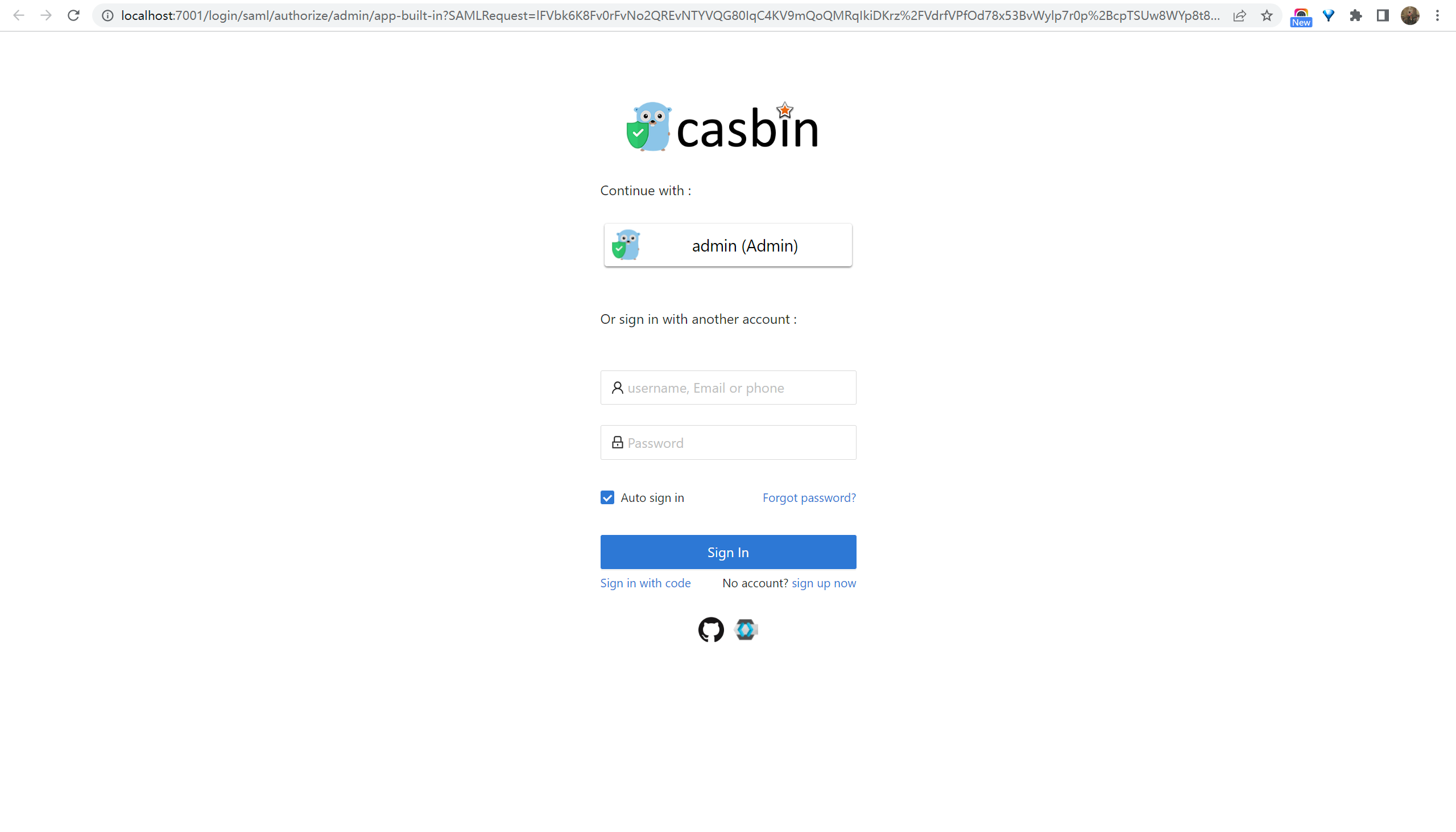

Click the URL to authenticate, and the login page of Hanzo IAM will be displayed.

![login](/img/how-to-connect/saml/saml_login.png)

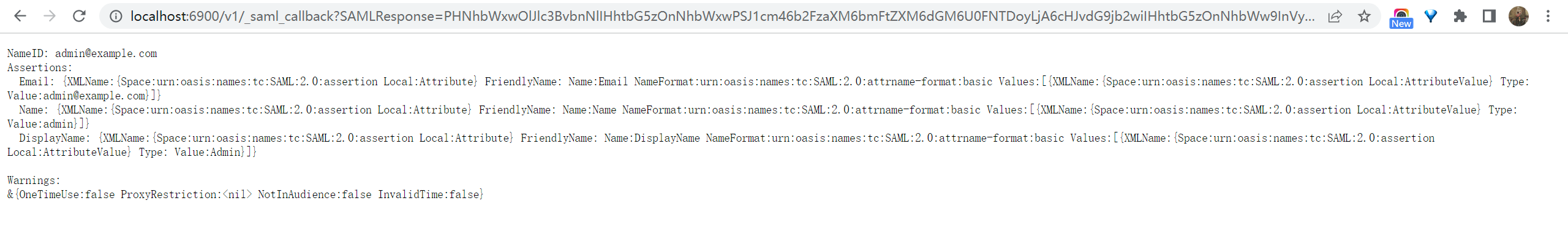

After authentication, the response looks like the examples below.

![response](/img/how-to-connect/saml/saml_response.png)
